INSTRUCTIONS FOR ANGLE TRANSPORT

TRIANGLE CONSTRUCTION



http://www.mathopenref.com/consttrianglesss.html

1)Draw all sides (or angles) with your ruler.
2)Start with one side, it doen´t matter which: draw the first side.
3)Take the second side with your compass (no matter which) and draw an arc from the end of the first side.
4)Take the third side with your compass and draw, from the another end of the first side.
5)Close the triangle: join the third point (given by both arcs). Draw the other two sides.

6)REMEMBER that there can be more than one solution for each exercise!


EXERCISES:

1)a=3cm, b=3cm, c=3cm.

2)a=4cm, b=5cm, c=6cm.

3)a=2.5cm, b=c=5cm.

4)a=5cm, b=4.5cm, c=4cm.

Creative triangles: some examples.

Take a look at the next images, that show creations based on triangles:

Here triangles have been organised in a GRID, to construct geometrical shapes:

This is a painting about triangles.

Is it figurative or abstract?

Can you feel its meaning?

This is another (different) painting.

Is it abstract or figurative?

What is it talking about?

Do you feel any sensation when you watch it?

Also triangles can be used to construct new shapes...

this portrait is done with small triangles.

Another expressive painting with triangles.

What sensation do you get?

And the last one:

Does this have a meaning?

Can you find parallel lines?

How many color tones do you see?

What sensation do you get?

ANGLES AND NUMBERS

TRIANGLE TYPES

According to their angles and sides, triangles can be classified as:

With this theory will be enough. Do you find it interesting?

Check this shape and count HOW MANY TRIANGLES are therein?

???????????????????????????????

TRIANGLES-Definition

A triangle, as you might know, is a geometrical shape (polygon) with three sides.

Every triangle has three SIDES and three ANGLES.

Those three angles ALWAYS ADD to 180º : (α + β + γ = 180º)

What´s the name of the three sides of this triangle?

___   ___   ___

AB, BC, CA

All sides are segments, but are also called after one small letter,

which is the same than the opposite vertex.

We use then :

                    ____

c instead of AB,

                     ____

a instead of BC

                ____

and b instead CA .

You have to know also that ANGLES are named after greek letters:

A=α  Β=β  C=γ     (α + β + γ = 180º)

You must know them. That way names and formulas become easier for you, dear students.

Now, some questions for you to discover:

DO YOU KNOW how many triangles do exist?

CAN YOU find examples for triangles IN NATURE?

...and in HUMAN WORLD?

IS THERE any triangle with more/less than 180º angles?

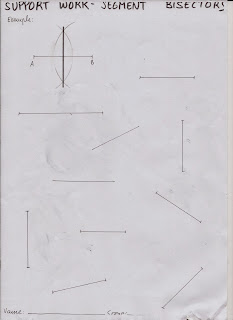

SUPPORT-(Reforç) BISECTORS-PARALLELS

Some more examples of Parallel in Art

Are all those paintings done with parallel lines?

Can you find any difference between them and the next paintings?
Are these parallel lines?
WHY there aren´t exact parallel lines?
WHICH sensations do they provide you?
WHO has painted them?

Piet Mondrian and parallel lines, parallel lines and Mondrian.

Here you have some pictures from Piet Mondrian.

What do ALL those paintings have in common?
Can you find the only one that he didn´t paint?
Why do you think he didn´t paint it?

Do you like this style? Why?
Do those pictures give you any new ideas?

SUPPORT WORK

You can practise some more with those exercises. Have fun!.

http://purple.mea-international.com/uploads/6/7/2/9/6729797/chapter_7_maths_paralell_and_perpendicular_lines.pdf

Want to BISECT ONLINE? Let´s play this game.

http://www.mangahigh.com/en/maths_games/shape/locus_and_construction/construct_bisectors_and_other_lines

DRAWING PARALLEL LINES

DRAWING PARALLEL LINES


WHAT to do? To draw some parallel lines, according to different angles.

WHERE to do it? On a thick DIN A-4 sheet.

HOW to do it?

• Divide your paper into four equal rectangles. Since we do not fold the paper,  measure both sides (length and width) and divide them (mathematically) into halves. We do not fold the paper.

(All parallel have to be 1 cm distance from others)

• First rectangle (left, up):               Draw HORIZONTAL parallel lines. Please keep the distance.
• Second rectangle (right, up):        Draw VERTICAL parallel lines: they are perpendicular to the latter.
• Third rectangle (left, bottom):      Draw a 45º angle (it´s twice on your set-square). Start drawing 30º parallel lines to the frame. (To keep the distance check it on the quiet ruler, and not on the frame.)
• Fourth rectangle (right, bottom):  Draw a 30º angle (it´s twice on your 30º-60º set square). Draw parallel lines to this angle.  (To keep the distance check it on the quiet ruler, and not on the frame.)

• Self-correct: check every line (including the frame and angles) with your rulers.
• Overline every line with a thin black marker.

Pay attention to precision and cleanliness: speed kills!)


FORGOT HOW TO SET THE RULERS? Watch this short
video:

 http://www.youtube.com/watch?v=pRPa2JGiZL0  (right handed people)
 http://www.youtube.com/watch?v=zsln2MCd-UU  (left handed people)

THE NAMES OF INSTRUMENTS

THE NAME OF INSTRUMENTS - freehand drawing

WHAT to do? To draw freehand (without rulers) all your instruments.

WHERE to do it? On a thick DIN A-4.

HOW to do it?

• Lay your instruments on the table.
• Observe their shape and size: you need to fit them all on your paper.
• Draw a sketch first, and check their shape, size and proportions.
• Pay attention to both set squares: they look alike but in fact they´re very different!
• Once you have drawn them, overline them with a marker.

(You can add some colour on your work, but the target is FREEHAND DRAWING)

VIDEO: Drawing parallel lines (lefthanded students)

http://www.youtube.com/watch?v=zsln2MCd-UU

VIDEO: Drawing parallel lines(Righthanded students)

http://www.youtube.com/watch?v=pRPa2JGiZL0

OUR MATERIALS

Here´s the list of all materials required:

RULERS: long straight ruler, 45º and 30º-60º set square.
COMPASS: one compass. Please write your name and group on it!
NOTEBOOK: one DIN A-4 notebook (for writing and sketching). It must have WHITE pages.
WORKBOOK: one DIN A-4 workbook (THICK paper). It´s used for definite works (those to be corrected)
PENCILS: one soft (0B, 1B, a.s.o.) and one hard pencil (4H, 5H,a.s.o.)
MARKERS: 0,2-0,4-0,8 mm black markers. (NOT permanent marker)
Some colours you have at home (wax, wooden crayons or markers) are welcome.

You also need a FOLDER to keep your work in. You MUST leave it in the classroom.
You can leave your tools (compass, rulers…) also. There is a safe place for them.

EVERY MATERIAL MUST HAVE YOUR NAME WRITTEN.
